90kw silent generator set

Silent Diesel Generator Set · 90 kW Prime / 99 kW Standby

90 kW Silent Diesel Generator Set for Sites Without a Reliable Grid

One platform, four build types — open frame, silent canopy, containerized or trailer-mounted — configured to your site, your fuel and your duty. Tell us the load and the site, and we will confirm the build type, rating and lead time.

90 kWPrime power99 kWStandby power380/220 VRated voltage50 HzRated frequency1500 rpmRated speedIP23Protection grade

Request a QuoteView Specifications

Manufacturing since 20062,000+ sets delivered100+ countriesLoad-tested before shipment

Silent · unrestricted service accessDiesel & gas · 10–3,750 kVA · 100+ countries

90 kW Prime power

99 kW Standby power

380/220 V Rated voltage

2006+ Manufacturer since

Product overview

Heavy-duty silent diesel generator sets for sites without a reliable grid

90 kW prime / 99 kW standby — 112 kVA — built as a soundproof canopy set package for small commercial and light industrial.

The Outevo 90 kW Silent Diesel Generator Set is used for retail units and small offices, workshops and repair bays, guesthouses and small clinics, typically intermittent prime duty with frequent start-stop cycles. Loads are normally light single-unit distribution boards.

Every unit is assembled and load-tested on our own production line for the 90 kW class. Shanghai Outevo Machinery Co., Ltd. has manufactured diesel and gas generator sets since 2006 from a 20,000 m² manufacturing facility with a fully automatic line, and more than 2,000 sets have been delivered to over 100 countries.

Protection on the 90 kW set is IP23 or higher, upgradable for dusty, humid, rainy or high-temperature sites.

• ✓90 kW prime / 99 kW standby at 380/220 V, 50 Hz, 1500 rpm
• ✓Full service access — panels open onto filters, belts and terminals
• ✓Tier-1 diesel engine platforms — Cummins, Perkins, Weichai and Yuchai
• ✓Closed water-cooling with forced fan and large-capacity water tank
• ✓IP23 or higher, upgradable for dust, humidity, rain and heat

Product features

Engineered for site conditions, not for the showroom

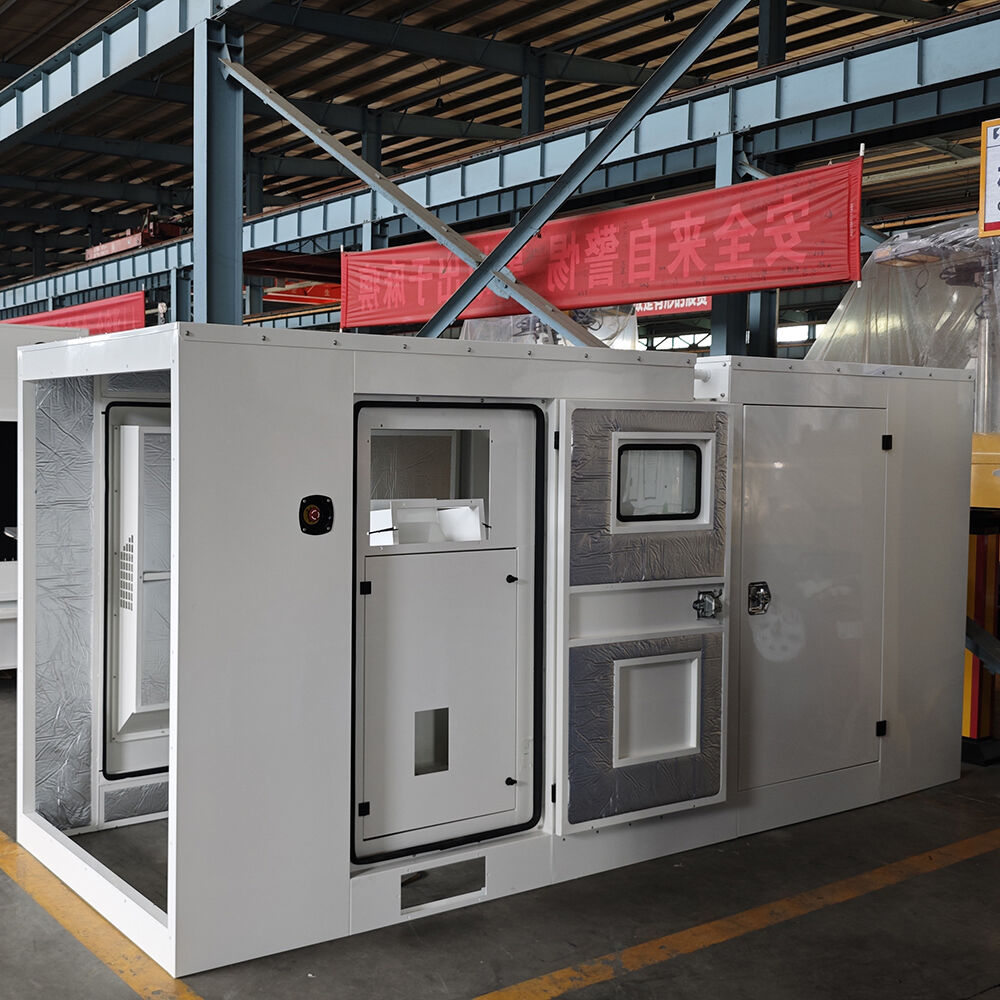

Heavy-Duty Silent Construction

The 90 kW set is built as a soundproof canopy unit on a steel base with anti-vibration mounts, so acoustic treatment and service access are designed together.

90 kW Prime / 99 kW Standby Duty

Declared output is 90 kW prime and 99 kW standby (112 kVA) at 380/220 V, 50 Hz, 1500 rpm. Design duty is intermittent prime duty with frequent start-stop cycles with light single-unit distribution boards.

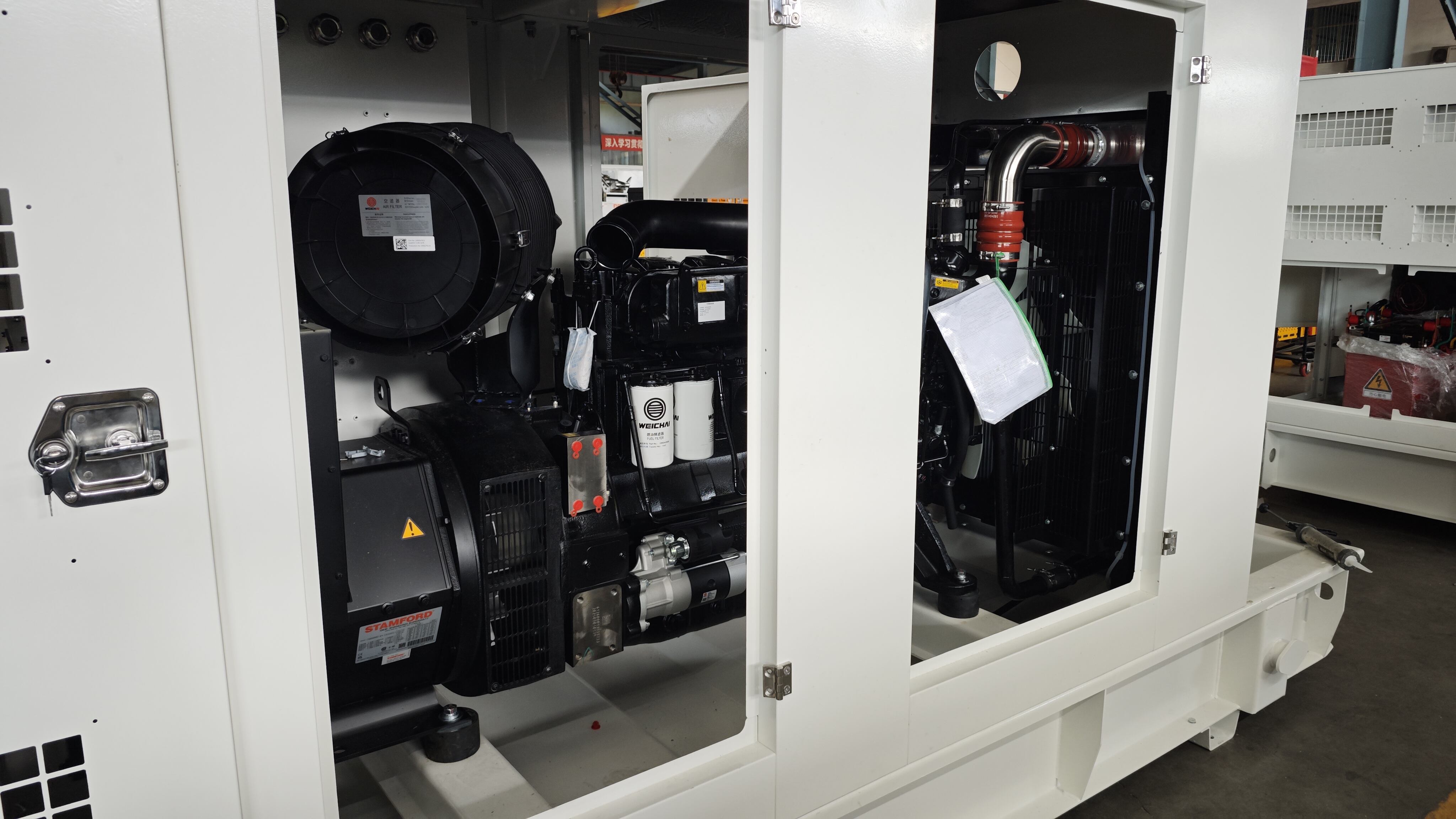

Tier-1 Diesel Engine Platforms

At 90 kW the diesel engine is selected from Cummins, Perkins, Weichai and Yuchai, then matched and aligned to the alternator before full-load testing in our own facility.

Closed Water-Cooling with Forced Fan

Closed-circuit water cooling with forced fan and a large water tank is specified for the 90 kW set, which stabilises temperature in high ambient and continuous load duty.

Industrial Protection and Environmental Adaptability

The 90 kW set carries sealed dustproof, waterproof and anti-corrosion treatment to IP23 or higher, with uprated protection available for severe sites.

Flexible Configuration and Fast Deployment

ATS, remote monitoring module, cable winch and quick connectors can be specified on the 90 kW set; the control, protection and voltage settings are configured to the project specification.

Specifications

Technical data — 90 kW silent diesel generator set

Standard soundproof canopy set configuration at 90 kW prime / 99 kW standby (112 kVA). Ratings, voltage and frequency are confirmed at specification.

Generator SetEngine & AlternatorControl & CoolingDimensions & Logistics

Related parameters	Parameter values
Power Capacity	Prime Power: 90 kW   Standby Power: 99 kW
Rated Voltage	380/220 Volts
Rated Current	Issued with the approved data sheet for the selected build
Rated Frequency	50 Hertz
Rated Speed	1500 rpm
Fuel Type	Diesel
Protection Grade	IP23 or higherUpgradable upon customization

Engine & alternator	Specification
Engine platform, standard	The engine platform for your order is confirmed at the specification stage
Alternative platforms	Cummins, Perkins, Weichai or Yuchai — the platform for your order is confirmed at order stage
Alternator	4-pole brushless, AVR-controlled — matched to the rating
Alternator brand options	Stamford, Leroy-Somer, Mecc Alte or Faraday
Matching	Engine, alternator and control system are matched to the rating and load profile you specify

Control & cooling	Specification
Cooling system	Closed water-cooling with forced cooling fan and large-capacity water tank, for stable temperature control under continuous load
Radiator design ambient	50 °C
Fuel system	Day-tank and fuel-system arrangement confirmed with the project specification
Control & protection	Configured to your project specification; optional automatic transfer switch (ATS) for automatic standby start, optional remote monitoring module
Ingress protection	IP23 or higher, upgradable upon customization

Dimensions & logistics	Value
Outline, silent (L × W × H)	Issued with the approved dimensional drawing for the selected build
Outline, silent canopy (same rating)	Issued with the approved dimensional drawing for the alternative build
Base frame	Fabricated steel skid, side-mounted silent layout
Net / gross weight	Supplied with the approved dimensional drawing and data sheet for your build
Container loading (20GP / 40HQ)	Supplied with the approved data sheet for your build
Basis	Standard silent configuration at this rating; refer to the approved dimensional drawing before installation design

Values above are published for the standard soundproof canopy set configuration at 90 kW prime / 112 kVA. Refer to the approved drawing for the 90 kW build and data sheet for your build before installation design.

Request the data sheetPrint this page

Engine & options

Specify the engine platform, control scheme and build

Engine platform Cummins · Perkins · Weichai · Yuchai Diesel engines on the 90 kW set are selected from these Tier-1 platforms and matched to the alternator; the platform for your order is confirmed at order stage.

Control & protection ATS & remote monitoring On the 90 kW set, an optional automatic transfer switch for automatic standby start, plus an optional remote monitoring module. The control and protection scheme on the 90 kW set is set to your project specification.

Build configuration This model ships as a soundproof canopy set This model ships as a soundproof canopy set. Open frame, containerized and mobile configurations are available across the 10–3,750 kVA range under OEM/ODM terms.

Applications

Where this 90 kW silent diesel generator set is used

1. Retail units Where retail units and small offices is the load, the 90 kW rating is normally specified at intermittent prime duty with frequent start-stop cycles. The load is usually single-phase and three-phase mixed, so the set is configured with a distribution board matched to the 90 kW rating.

2. Workshops The 90 kW silent diesel generator set set suits workshops and repair bays. Duty on the 90 kW set is intermittent prime duty with frequent start-stop cycles. Motor starting is light, so a modest step-load margin is enough at 90 kW.

3. Guesthouses Guesthouses and small clinics is a standard application for the 90 kW unit, which runs at intermittent prime duty with frequent start-stop cycles. Duty on the 90 kW set is intermittent, so fuel autonomy is sized around shift patterns rather than continuous run.

4. Water pumps The 90 kW set is commonly applied to water pumps and irrigation at intermittent prime duty with frequent start-stop cycles. Ambient around the 90 kW set is often unshaded, so the radiator and enclosure are specified for high daytime temperature.

5. Small cold rooms For small cold rooms the 90 kW rating covers small commercial and light industrial at intermittent prime duty with frequent start-stop cycles. Noise is a factor on residential sites, so canopy options are considered at the 90 kW rating.

6. Construction hoists Where construction hoists and small tools is the load, the 90 kW rating is normally specified at intermittent prime duty with frequent start-stop cycles. Access to the 90 kW skid is usually tight, so the skid footprint and lifting points matter as much as output.

Compare configurations

Open frame, silent or containerized?

The same engineering and testing standard applies to this 90 kW rating in all three builds — the difference is enclosure, access and transport.

Consideration	Silent (this model)	Silent	Containerized
Enclosure	Open steel base frame, no canopy	Soundproof canopy	40HQ container shell
Service access	Unrestricted — no panels to remove for routine maintenance	Through canopy access doors and monitoring windows	Through container doors and reserved access panels
Noise control	Not attenuated — silent layout	Multi-stage silencing structure and sound-absorbing materials	Container shell combined with silencing
Weight and transport	Lightest of the three builds	Heavier than silent	Container handling and ocean freight
Typical duty	Prime power on site; standby for factories and buildings	Noise-sensitive locations such as residential, commercial and healthcare sites	Rapid transport and deployment, remote and long-duration sites
Rated power of this model	90 kW prime / 99 kW standby	Quoted per project	Quoted per project
Protection grade	IP23 or higher, upgradable	Upgradable upon customization	Upgradable upon customization
Minimum order quantity	1 set	Quoted per project	Quoted per project

This model · 90 kW silent diesel generator set

Range · 10–3,750 kVA

Diesel & gas

Open frame · silent · containerized · mobile

All silent sets

Send us the required power for the 90 kW set, voltage and frequency and we will return a configuration.

FAQ

Frequently asked questions about this 90 kW silent diesel generator set

What power rating does this generator set provide?

This unit is rated 90 kW prime / 99 kW standby (112 kVA) at 380/220 V, 50 Hz, 1500 rpm. Rated current is stated on the approved data sheet for the selected build, because it follows the voltage and power factor confirmed for the project.

Which diesel engines are available for this set?

This 90 kW set is available on Cummins, Perkins, Weichai and Yuchai platforms. The engine is matched to the alternator at the 90 kW rating and the complete set is aligned and full-load tested in our own works, so the platform for your order is confirmed at specification stage rather than assumed.

Open frame, silent or containerized — how do I choose?

Enclosure choice follows site conditions rather than rating. This page covers the soundproof canopy set build; at 90 kW the same engine and alternator package can also be supplied in the other builds across Outevo’s 10–3,750 kVA range, with parallel operation is not normally required at this rating.

Can the voltage and frequency be customised?

Yes. 380/220 V and 50 Hz are the published standard for the 90 kW rating, but voltage and frequency are set to your project specification under OEM/ODM terms, including 60 Hz and medium-voltage requirements where the project calls for them.

What is the minimum order quantity?

One set. A single 90 kW unit can be ordered for a standalone site; where load growth or redundancy is expected, parallel operation is not normally required at this rating. Other ratings in the 10–3,750 kVA range are quoted per project.

How is the quality of each unit assured?

Every 90 kW set is assembled and load-tested on our own production lines before shipment, and travels with a data sheet and test record. Shanghai Outevo Machinery Co., Ltd. has manufactured diesel and gas generator sets since 2006 from a 20,000 m² manufacturing facility.

Get a quote

Configure your 90 kW silent diesel generator set

Tell us the rating, voltage and frequency you need for the 90 kW unit and where it is going. Our engineering team returns a configuration and quotation.

What we need from you

• Required power rating — this model or another rating in the 10–3,750 kVA range
• Voltage and frequency settings for your site
• Prime power or standby duty, and the application
• Destination port and required quantity

[email protected]

Request a quote

Our representative will contact you soon.

Your configuration: 90 kW silent diesel generator set (this model), 380/220 V, 50 Hz
