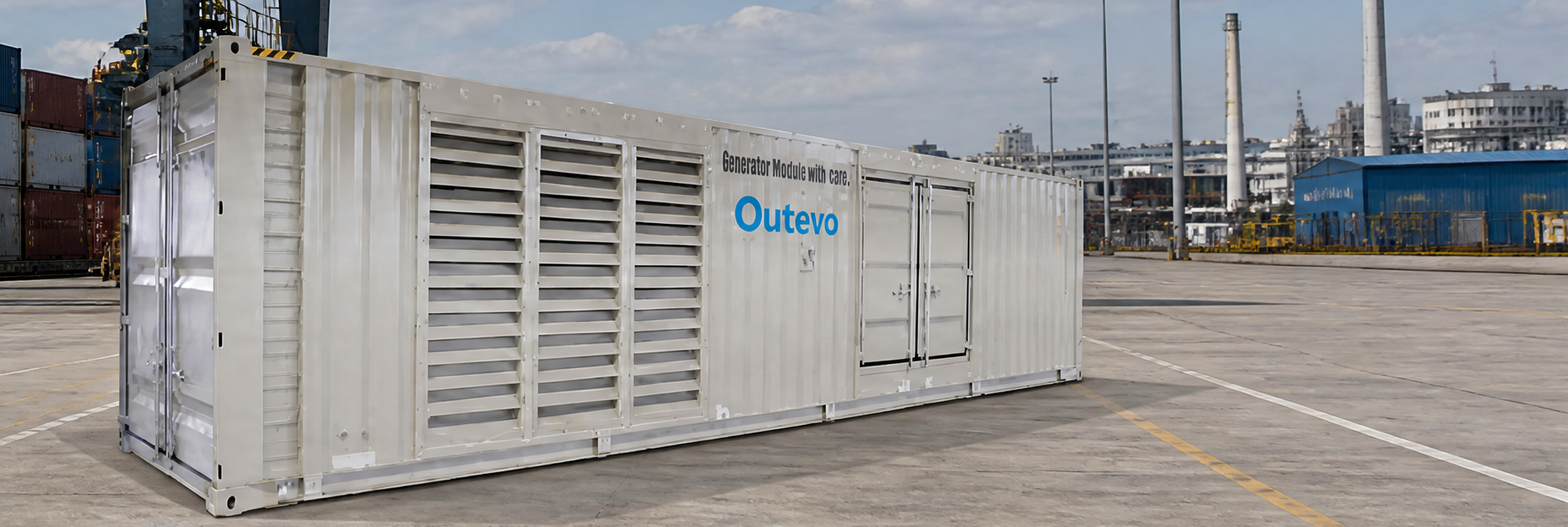

1200kW Super Silent Emergency Diesel Container Generator for Shopping Mall, Hospital, Commercial Building

Containerized Diesel Generator Set · 1200 kW Prime / 1320 kW Standby

A 1200 kW containerized diesel generator set for data centers

One platform, four build types — open frame, silent canopy, containerized or trailer-mounted — configured to your site, your fuel and your duty. Tell us the load and the site, and we will confirm the build type, rating and lead time.

1200 kWPrime power1320 kWStandby power380/220 VRated voltage50 HzRated frequency1500 rpmRated speedIP23Protection grade

Request a QuoteView Specifications

Manufacturing since 20062,000+ sets delivered100+ countriesLoad-tested before shipment

Containerized · unrestricted service accessDiesel & gas · 10–3,750 kVA · 100+ countries

1200 kW Prime power

1320 kW Standby power

380/220 V Rated voltage

2006+ Manufacturer since

Product overview

Heavy-duty containerized diesel generator sets for sites without a reliable grid

1200 kW prime / 1320 kW standby — 1500 kVA — built as a 40HQ container package package for heavy industrial and project power.

A data centre cannot accept an outage in the middle of a transaction. This 1200 kW containerized set (1,500 kVA prime, 1320 kW standby) is specified as the standby source for IT and mechanical loads. Standby duty in a data centre means long idle periods interrupted by a hard step load. The KTA50-GS8 engine is matched to the 1200 kW rating with a closed water-cooling circuit, and every unit is assembled and load-tested on Outevo production lines.

Every unit is assembled and load-tested on our own production line for the 1200 kW class. The containerized build is lined with sound-absorbing material so the set can sit close to a technical building without breaching site noise limits. ATS, remote monitoring and paralleling schemes are configured to the specification. Shanghai Outevo Machinery Co., Ltd. has manufactured diesel and gas generator sets since 2006 from a 20,000 m² manufacturing facility, and more than 2,000 sets have been delivered to over 100 countries.

Protection on the 1200 kW set is IP23 or higher, upgradable for dusty, humid, rainy or high-temperature sites.

• ✓1200 kW prime / 1320 kW standby at 380/220 V, 50 Hz, 1500 rpm
• ✓Full service access — filters and terminals reachable without opening the shell
• ✓Tier-1 diesel engine platforms — Cummins, Perkins, Weichai and Yuchai
• ✓Closed water-cooling with forced fan and large-capacity water tank
• ✓IP23 or higher, upgradable for dust, humidity, rain and heat

Product features

Engineered for site conditions, not for the showroom

Heavy-Duty Container Construction

The 1200 kW package arrives as one unit with the enclosure, base frame and control panel already assembled, so installation work on site is limited to positioning, cabling and commissioning.

1200 kW Prime / 1320 kW Standby Duty

Design duty at 1200 kW prime and 1320 kW standby is standby operation with a hard step load, which is why the alternator is matched against starting kVA rather than running kW alone.

Tier-1 Diesel Engine Platforms

The engine is drawn from the Cummins, Perkins, Weichai and Yuchai platforms and aligned to the alternator before full-load testing, which is the test that proves the step-load response.

Closed Water-Cooling with Forced Fan

Closed-circuit water cooling with forced fan and a large water tank keeps coolant temperature stable during long idle periods interrupted by sudden load, a pattern typical of data centre standby.

Industrial Protection and Environmental Adaptability

Sealed dustproof and anti-corrosion treatment to IP23 or higher, with fire-system and alarm interfaces available so the set integrates with the building life-safety scheme.

Flexible Configuration and Fast Deployment

ATS, remote monitoring and synchronising options can be specified; where two or more units share the load, control and load-sharing settings are configured to the site scheme.

Specifications

Technical data — 1200 kW containerized diesel generator set

Standard 40HQ container package configuration at 1200 kW prime / 1320 kW standby (1500 kVA). Ratings, voltage and frequency are confirmed at specification.

Generator SetEngine & AlternatorControl & CoolingDimensions & Logistics

Related parameters	Parameter values
Power Capacity	Prime Power: 1200 kW   Standby Power: 1320 kW
Rated Voltage	380/220 Volts
Rated Current	Issued with the approved data sheet for the selected build
Rated Frequency	50 Hertz
Rated Speed	1500 rpm
Fuel Type	Diesel
Protection Grade	IP23 or higherUpgradable upon customization

Engine & alternator	Specification
Engine platform, standard	The engine platform for your order is confirmed at the specification stage
Alternative platforms	Cummins, Perkins, Weichai or Yuchai — the platform for your order is confirmed at order stage
Alternator	4-pole brushless, AVR-controlled — matched to the rating
Alternator brand options	Stamford, Leroy-Somer, Mecc Alte or Faraday
Matching	Engine, alternator and control system are matched to the rating and load profile you specify

Control & cooling	Specification
Cooling system	Closed water-cooling with forced cooling fan and large-capacity water tank, for stable temperature control under continuous load
Radiator design ambient	50 °C
Fuel system	Day-tank and fuel-system arrangement confirmed with the project specification
Control & protection	Configured to your project specification; optional automatic transfer switch (ATS) for automatic standby start, optional remote monitoring module
Ingress protection	IP23 or higher, upgradable upon customization

Dimensions & logistics	Value
Outline, container (L × W × H)	Issued with the approved dimensional drawing for the selected build
Outline, silent canopy (same rating)	Issued with the approved dimensional drawing for the alternative build
Base frame	Fabricated steel skid, side-mounted containerized layout
Net / gross weight	Supplied with the approved dimensional drawing and data sheet for your build
Container loading (20GP / 40HQ)	Supplied with the approved data sheet for your build
Basis	Standard containerized configuration at this rating; refer to the approved dimensional drawing before installation design

Values above are published for the standard containerized build at 1200 kW prime / 1,500 kVA, enclosure 12,192 × 2,438 × 2,896 mm. Verify against the approved drawing and data sheet for your build before installation design.

Request the data sheetPrint this page

Engine & options

Specify the engine platform, control scheme and build

Engine platform Cummins · Perkins · Weichai · Yuchai Engines on the 1200 kW set come from the Cummins, Perkins, Weichai and Yuchai platforms and are matched to the alternator; the platform for your order is confirmed at order stage.

Control & protection ATS & remote monitoring On the 1200 kW set an optional automatic transfer switch and remote monitoring module are available, so the transition happens without an operator on site.

Build configuration This model ships as a 40HQ containerized set This model ships as a containerized set. Open frame, containerized and mobile builds of the same rating are available under OEM/ODM terms.

Applications

Where this 1200 kW containerized diesel generator set is used

1. IT and UPS support Takes over the critical bus when the utility fails, carrying servers, storage and network equipment through an outage of any duration.

2. Cooling and chilled-water plant Drives chillers, pumps and CRAC units so heat rejection continues after the mains drops, which is what actually protects the IT load.

3. Automatic transfer and paralleling Started through an optional ATS or a synchronising panel so the transition happens without an operator on site.

4. Edge and container sites Sized for remote edge nodes where the incoming supply is one feed only and the generator is the sole backup.

5. Maintenance and load-bank testing Supports scheduled testing with resistive load banks so the set is proven at rated load rather than idled.

6. Fire, access and security systems Keeps fire suppression, access control and CCTV live during an outage, including the period before the mains returns.

Compare configurations

Open frame, silent or containerized?

The same engineering and testing standard applies to this 1200 kW rating in all three builds — the difference is enclosure, access and transport.

Consideration	Containerized (this model)	Silent	Containerized
Enclosure	Open steel base frame, no canopy	Soundproof canopy	40HQ container shell
Service access	Unrestricted — no panels to remove for routine maintenance	Through canopy access doors and monitoring windows	Through container doors and reserved access panels
Noise control	Not attenuated — containerized layout	Multi-stage silencing structure and sound-absorbing materials	Container shell combined with silencing
Weight and transport	Lightest of the three builds	Heavier than containerized	Container handling and ocean freight
Typical duty	Prime power on site; standby for factories and buildings	Noise-sensitive locations such as residential, commercial and healthcare sites	Rapid transport and deployment, remote and long-duration sites
Rated power of this model	1200 kW prime / 1320 kW standby	Quoted per project	Quoted per project
Protection grade	IP23 or higher, upgradable	Upgradable upon customization	Upgradable upon customization
Minimum order quantity	1 set	Quoted per project	Quoted per project

This model · 1200 kW containerized diesel generator set

Range · 10–3,750 kVA

Diesel & gas

Open frame · silent · containerized · mobile

All containerized sets

Send us the required power for the 1200 kW set, voltage and frequency and we will return a configuration.

FAQ

Frequently asked questions about this 1200 kW containerized diesel generator set

What power rating does this generator set provide?

This model is rated 1200 kW (1,500 kVA) prime and 1320 kW standby at 380/220 V, 50 Hz, 1500 rpm, using the KTA50-GS8 engine in a containerized build of 12,192 × 2,438 × 2,896 mm. Control and protection schemes are configured to your specification.

Which diesel engines are available for this set?

For data centre duty Outevo builds this rating as a containerized set with an optional ATS and remote monitoring module. The same rating is available in open frame, containerized and mobile builds under OEM/ODM terms.

Open frame, silent or containerized — how do I choose?

Enclosure choice follows the installation point, not the rating. At 1200 kW the containerized build suits a technical building or service yard where boundary noise matters; open frame and mobile builds use the same engine and alternator.

Can the voltage and frequency be customised?

Yes. 380/220 V and 50 Hz are the published standard for the 1200 kW rating, and voltage and frequency follow the site specification under OEM/ODM terms.

What is the minimum order quantity?

A single 1200 kW unit can be ordered for a standalone site. Where concurrent maintainability or load growth is expected, parallel operation and load sharing are configured from the outset.

How is the quality of each unit assured?

Every 1200 kW set is assembled and load-tested on our own production lines and ships with a data sheet and test record. Shanghai Outevo Machinery Co., Ltd. has manufactured generator sets since 2006 and delivered more than 2,000 units to over 100 countries.

Get a quote

Configure your 1200 kW containerized diesel generator set

Tell us the rating, voltage and frequency you need for the 1200 kW unit and where it is going. Our engineering team returns a configuration and quotation.

What we need from you

• Required power rating — this model or another rating in the 10–3,750 kVA range
• Voltage and frequency settings for your site
• Prime power or standby duty, and the application
• Destination port and required quantity
