200kw trailer generator set

Trailer-Mounted Diesel Generator Set · 200 kW Prime / 220 kW Standby

200 kW Trailer-Mounted Diesel Generator Set for Sites Without a Reliable Grid

One platform, four build types — open frame, silent canopy, containerized or trailer-mounted — configured to your site, your fuel and your duty. Tell us the load and the site, and we will confirm the build type, rating and lead time.

200 kWPrime power220 kWStandby power380/220 VRated voltage50 HzRated frequency1500 rpmRated speedIP23Protection grade

Request a QuoteView Specifications

Manufacturing since 20062,000+ sets delivered100+ countriesLoad-tested before shipment

Trailer-mounted · unrestricted service accessDiesel & gas · 10–3,750 kVA · 100+ countries

200 kW Prime power

220 kW Standby power

380/220 V Rated voltage

2006+ Manufacturer since

Product overview

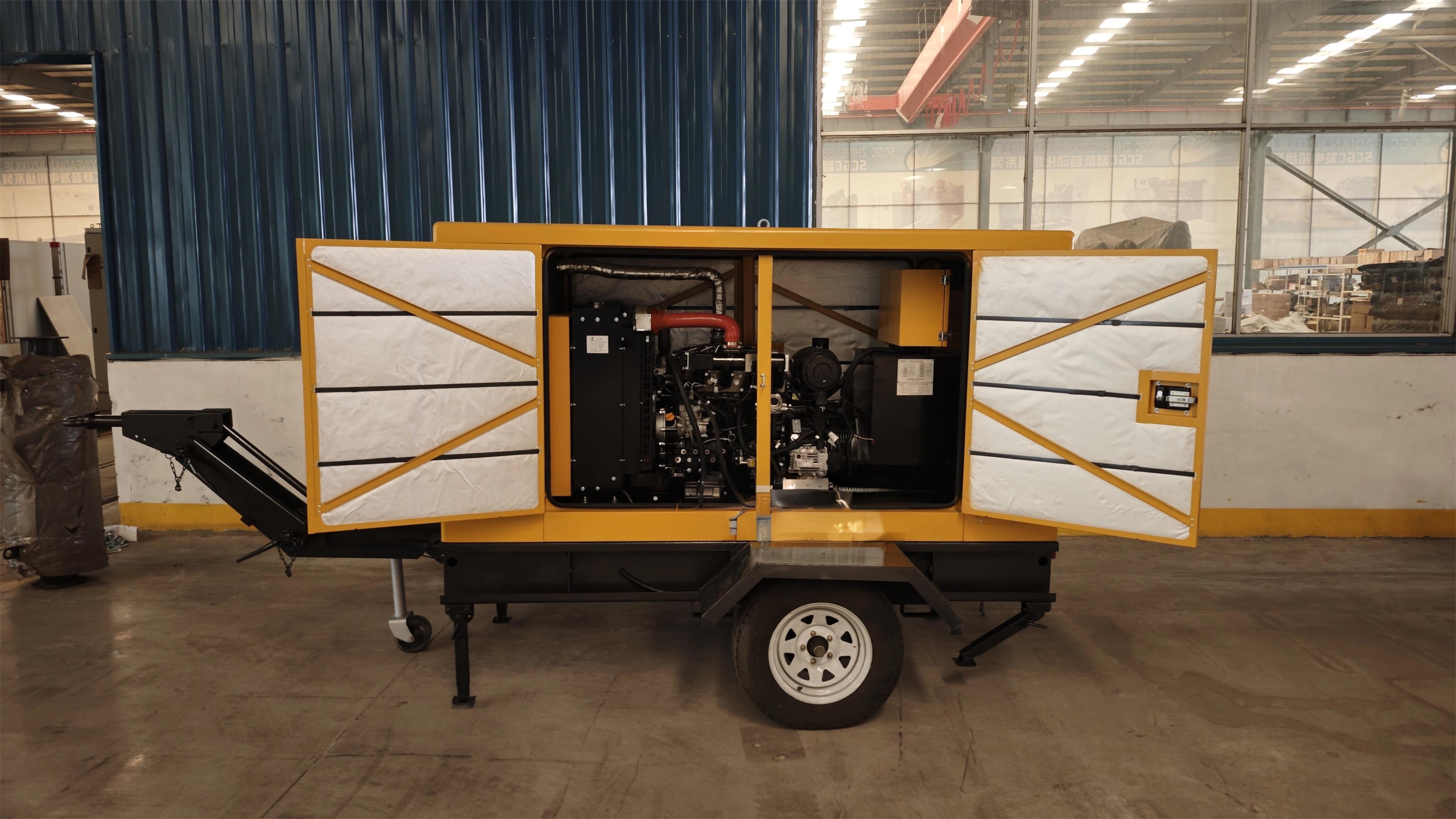

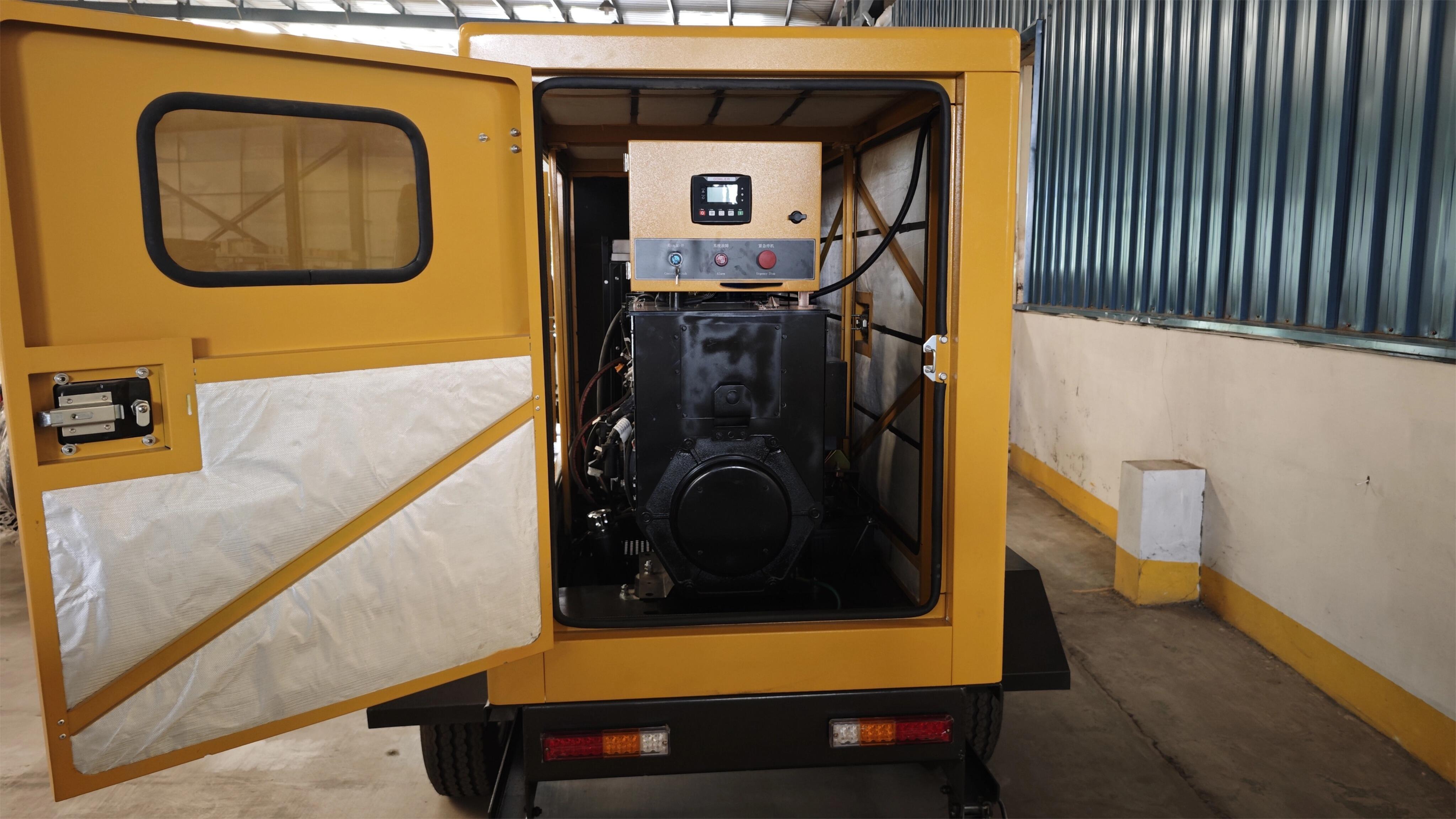

Heavy-duty trailer-mounted diesel generator sets for sites without a reliable grid

One road-towable trailer unit package, 200 kW prime and 220 kW standby (250 kVA), aimed at mid-size industrial and site power.

This 200 kW Trailer-Mounted Diesel Generator Set is specified for hotels and commercial buildings, data and telecom rooms, quarries and crushing plants. Typical duty for the 200 kW set is continuous prime duty with regular load swings, feeding panel boards with mixed motor and lighting loads.

Assembly and full-load testing take place on Outevo’s own lines. The company has built diesel and gas sets including this 200 kW class generator sets since 2006 at a 20,000 m² manufacturing facility served by a fully automatic line; over 2,000 sets have shipped to more than 100 countries.

The 200 kW package is protected to IP23 or higher and can be uprated for dust, humidity, rain or heat.

• ✓200 kW prime / 220 kW standby at 380/220 V, 50 Hz, 1500 rpm
• ✓Full service access — routine work carried out without unhitching
• ✓Tier-1 diesel engine platforms — Cummins, Perkins, Weichai and Yuchai
• ✓Closed water-cooling with forced fan and large-capacity water tank
• ✓IP23 or higher, upgradable for dust, humidity, rain and heat

Product features

Engineered for site conditions, not for the showroom

Heavy-Duty Trailer-Mounted Construction

A road-towable chassis carries the 200 kW engine and alternator with drawbar and anti-vibration mounting; towing replaces lifting equipment on site.

200 kW Prime / 220 kW Standby Duty

200 kW prime / 220 kW standby at 380/220 V, 50 Hz, 1500 rpm — 250 kVA. Duty assumed for the 200 kW set is continuous prime duty with regular load swings, feeding panel boards with mixed motor and lighting loads.

Tier-1 Diesel Engine Platforms

The 200 kW set can be built on diesel platforms from Cummins, Perkins, Weichai and Yuchai, engine matched to alternator, with alignment and full-load testing in our own facility.

Closed Water-Cooling with Forced Fan

Cooling on the 200 kW set is closed-circuit water with a forced fan and generously sized tank, keeping temperatures steady in long runs and hot conditions.

Industrial Protection and Environmental Adaptability

Sealing and anti-corrosion treatment take the 200 kW package to IP23 or higher, with higher ratings on request, so it stays in service through dust, rain, snow and temperature swings.

Flexible Configuration and Fast Deployment

For the 200 kW unit, ATS, remote monitoring, cable winch and quick connectors shorten wiring and starting; mounting and control settings follow your project specification.

Specifications

Technical data — 200 kW trailer-mounted diesel generator set

Standard road-towable trailer unit configuration at 200 kW prime / 220 kW standby (250 kVA). Ratings, voltage and frequency are confirmed at specification.

Generator SetEngine & AlternatorControl & CoolingDimensions & Logistics

Related parameters	Parameter values
Power Capacity	Prime Power: 200 kW   Standby Power: 220 kW
Rated Voltage	380/220 Volts
Rated Current	Issued with the approved data sheet for the selected build
Rated Frequency	50 Hertz
Rated Speed	1500 rpm
Fuel Type	Diesel
Protection Grade	IP23 or higherUpgradable upon customization

Engine & alternator	Specification
Engine platform, standard	The engine platform for your order is confirmed at the specification stage
Alternative platforms	Cummins, Perkins, Weichai or Yuchai — the platform for your order is confirmed at order stage
Alternator	4-pole brushless, AVR-controlled — matched to the rating
Alternator brand options	Stamford, Leroy-Somer, Mecc Alte or Faraday
Matching	Engine, alternator and control system are matched to the rating and load profile you specify

Control & cooling	Specification
Cooling system	Closed water-cooling with forced cooling fan and large-capacity water tank, for stable temperature control under continuous load
Radiator design ambient	50 °C
Fuel system	Day-tank and fuel-system arrangement confirmed with the project specification
Control & protection	Configured to your project specification; optional automatic transfer switch (ATS) for automatic standby start, optional remote monitoring module
Ingress protection	IP23 or higher, upgradable upon customization

Dimensions & logistics	Value
Outline, trailer-mounted (L × W × H)	Issued with the approved dimensional drawing for the selected build
Outline, silent canopy (same rating)	Issued with the approved dimensional drawing for the alternative build
Base frame	Fabricated steel skid, side-mounted trailer-mounted layout
Net / gross weight	Supplied with the approved dimensional drawing and data sheet for your build
Container loading (20GP / 40HQ)	Supplied with the approved data sheet for your build
Basis	Standard trailer-mounted configuration at this rating; refer to the approved dimensional drawing before installation design

The figures above describe the standard road-towable trailer unit build at 200 kW prime (250 kVA). Confirm the 200 kW build against the approved drawing and data sheet for your build before installation design.

Request the data sheetPrint this page

Engine & options

Specify the engine platform, control scheme and build

Engine platform Cummins · Perkins · Weichai · Yuchai The 200 kW rating can be built on any of these Tier-1 platforms, each matched to the alternator; the platform is confirmed when the order is placed.

Control & protection ATS & remote monitoring For the 200 kW set, ATS for automatic standby starting and an optional remote monitoring module are available. Control and protection logic follows the project specification.

Build configuration This model ships as a road-towable trailer set This model ships as a road-towable trailer set. Open frame, silent and containerized configurations are available across the 10–3,750 kVA range under OEM/ODM terms.

Applications

Where this 200 kW trailer-mounted diesel generator set is used

1. Production lines For production lines and compressors the 200 kW rating covers mid-size industrial and site power at continuous prime duty with regular load swings. Mixed motor and lighting load means the alternator is matched with step-load margin at 200 kW.

2. Hotels Where hotels and commercial buildings is the load, the 200 kW rating is normally specified at continuous prime duty with regular load swings. Shift patterns for the 200 kW set usually mean 12–16 hours a day, so fuel autonomy is calculated on that basis.

3. Data The 200 kW trailer-mounted diesel generator set set suits data and telecom rooms. Duty is continuous prime duty with regular load swings. Compressor and motor starts drive the transient requirement, which is checked against the 200 kW rating.

4. Quarries Quarries and crushing plants is a standard application for the 200 kW unit, which runs at continuous prime duty with regular load swings. Parallel operation on the 200 kW set is often considered where duty is split between two units.

5. Agricultural processing The 200 kW set is commonly applied to agricultural processing at continuous prime duty with regular load swings. Sound limits at the boundary usually point to a canopy build at the 200 kW rating.

6. Site offices For site offices and welfare blocks the 200 kW rating covers mid-size industrial and site power at continuous prime duty with regular load swings. Cable runs for the 200 kW set are longer, so voltage drop is checked before the final rating is fixed.

Compare configurations

Open frame, silent or containerized?

Whichever build is chosen for the 200 kW rating, engineering and testing are identical; only the enclosure, access and transport change.

Consideration	Trailer-mounted (this model)	Silent	Containerized
Enclosure	Open steel base frame, no canopy	Soundproof canopy	40HQ container shell
Service access	Unrestricted — no panels to remove for routine maintenance	Through canopy access doors and monitoring windows	Through container doors and reserved access panels
Noise control	Not attenuated — trailer-mounted layout	Multi-stage silencing structure and sound-absorbing materials	Container shell combined with silencing
Weight and transport	Lightest of the three builds	Heavier than trailer-mounted	Container handling and ocean freight
Typical duty	Prime power on site; standby for factories and buildings	Noise-sensitive locations such as residential, commercial and healthcare sites	Rapid transport and deployment, remote and long-duration sites
Rated power of this model	200 kW prime / 220 kW standby	Quoted per project	Quoted per project
Protection grade	IP23 or higher, upgradable	Upgradable upon customization	Upgradable upon customization
Minimum order quantity	1 set	Quoted per project	Quoted per project

This model · 200 kW trailer-mounted diesel generator set

Range · 10–3,750 kVA

Diesel & gas

Open frame · silent · containerized · mobile

All trailer-mounted sets

Give us the power for the 200 kW set, voltage and frequency and we will come back with a configuration.

FAQ

Frequently asked questions about this 200 kW trailer-mounted diesel generator set

What power rating does this generator set provide?

This unit is rated 200 kW prime / 220 kW standby (250 kVA) at 380/220 V, 50 Hz, 1500 rpm. Rated current is stated on the approved data sheet for the selected build, because it follows the voltage and power factor confirmed for the project.

Which diesel engines are available for this set?

This 200 kW set is available on Cummins, Perkins, Weichai and Yuchai platforms. The engine is matched to the alternator at the 200 kW rating and the complete set is aligned and full-load tested in our own works, so the platform for your order is confirmed at specification stage rather than assumed.

Trailer-Mounted, silent or containerized — how do I choose?

Enclosure choice follows site conditions rather than rating. This page covers the road-towable trailer unit build; at 200 kW the same engine and alternator package can also be supplied in the other builds across Outevo’s 10–3,750 kVA range, with parallel operation is available where duty is split across two units.

Can the voltage and frequency be customised?

Yes. 380/220 V and 50 Hz are the published standard for the 200 kW rating, but voltage and frequency are set to your project specification under OEM/ODM terms, including 60 Hz and medium-voltage requirements where the project calls for them.

What is the minimum order quantity?

One set. A single 200 kW unit can be ordered for a standalone site; where load growth or redundancy is expected, parallel operation is available where duty is split across two units. Other ratings in the 10–3,750 kVA range are quoted per project.

How is the quality of each unit assured?

Every 200 kW set is assembled and load-tested on our own production lines before shipment, and travels with a data sheet and test record. Shanghai Outevo Machinery Co., Ltd. has manufactured diesel and gas generator sets since 2006 from a 20,000 m² manufacturing facility.

Get a quote

Configure your 200 kW trailer-mounted diesel generator set

Give us the voltage and frequency for the 200 kW set and the destination site; our engineering team comes back with a configuration and quotation.

What we need from you

• Required power rating — this model or another rating in the 10–3,750 kVA range
• Voltage and frequency settings for your site
• Prime power or standby duty, and the application
• Destination port and required quantity
