300kw trailer generator set

Trailer-Mounted Diesel Generator Set · 300 kW Prime / 330 kW Standby

300 kW Trailer-Mounted Diesel Generator Set for Sites Without a Reliable Grid

One platform, four build types — open frame, silent canopy, containerized or trailer-mounted — configured to your site, your fuel and your duty. Tell us the load and the site, and we will confirm the build type, rating and lead time.

300 kWPrime power330 kWStandby power380/220 VRated voltage50 HzRated frequency1500 rpmRated speedIP23Protection grade

Request a QuoteView Specifications

Manufacturing since 20062,000+ sets delivered100+ countriesLoad-tested before shipment

Trailer-mounted · unrestricted service accessDiesel & gas · 10–3,750 kVA · 100+ countries

300 kW Prime power

330 kW Standby power

380/220 V Rated voltage

2006+ Manufacturer since

Product overview

Heavy-duty trailer-mounted diesel generator sets for sites without a reliable grid

Rated 300 kW prime and 330 kW standby at 375 kVA, supplied as a road-towable trailer unit unit for mid-size industrial and site power.

Where it is installed — data and telecom rooms, quarries and crushing plants, agricultural processing — the 300 kW set works at continuous prime duty with regular load swings. Distribution for the 300 kW set is usually through panel boards with mixed motor and lighting loads.

Each 300 kW set is assembled and load-tested in our own works. Outevo has produced diesel and gas sets including this 300 kW rating generating sets since 2006 from a 20,000 m² manufacturing facility with a fully automatic line, and has delivered more than 2,000 sets to over 100 countries.

IP23 or higher protection is standard on the 300 kW set, with higher grades available for dust, humidity, rain or heat.

• ✓300 kW prime / 330 kW standby at 380/220 V, 50 Hz, 1500 rpm
• ✓Full service access — service points reachable from the towing chassis
• ✓Tier-1 diesel engine platforms — Cummins, Perkins, Weichai and Yuchai
• ✓Closed water-cooling with forced fan and large-capacity water tank
• ✓IP23 or higher, upgradable for dust, humidity, rain and heat

Product features

Engineered for site conditions, not for the showroom

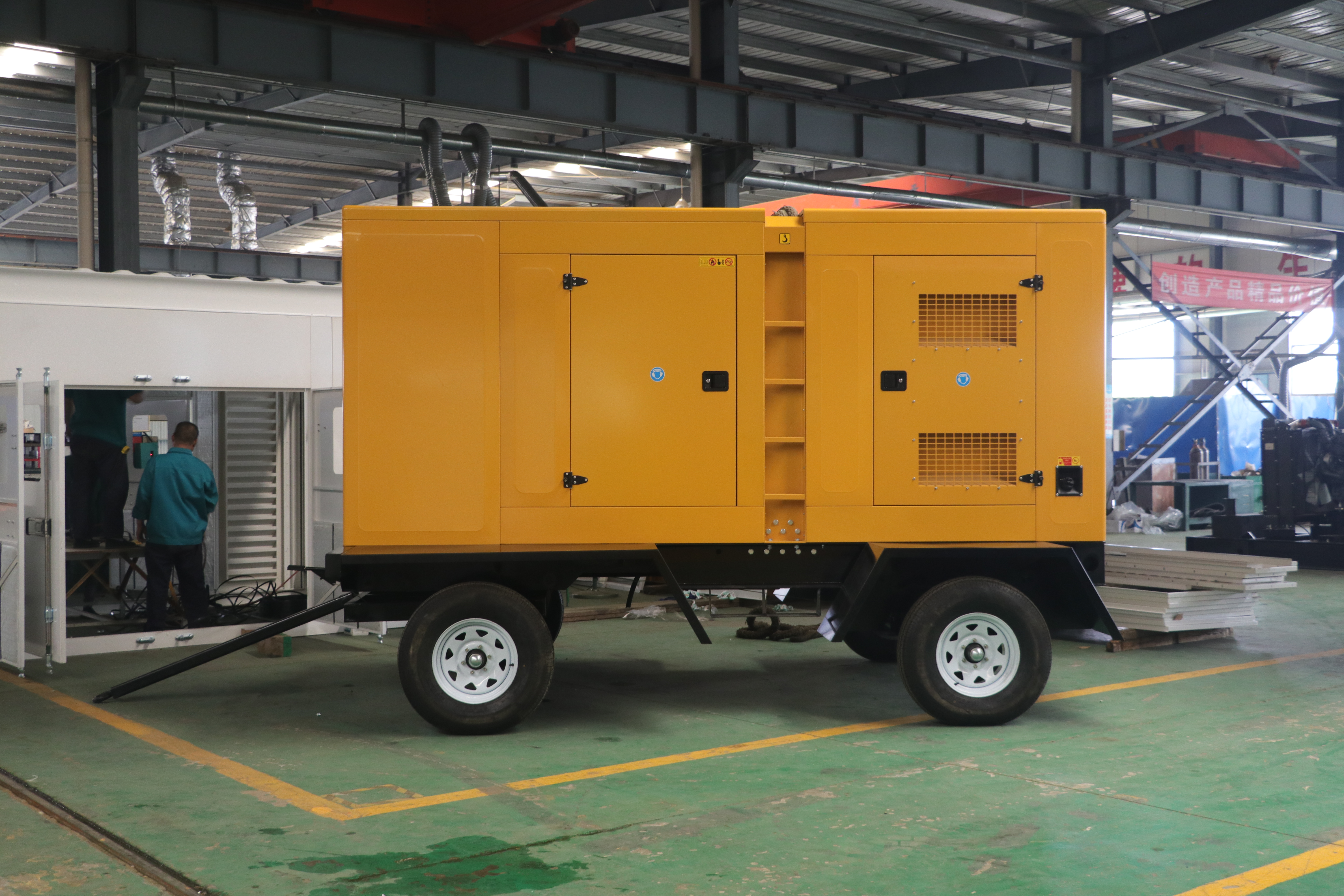

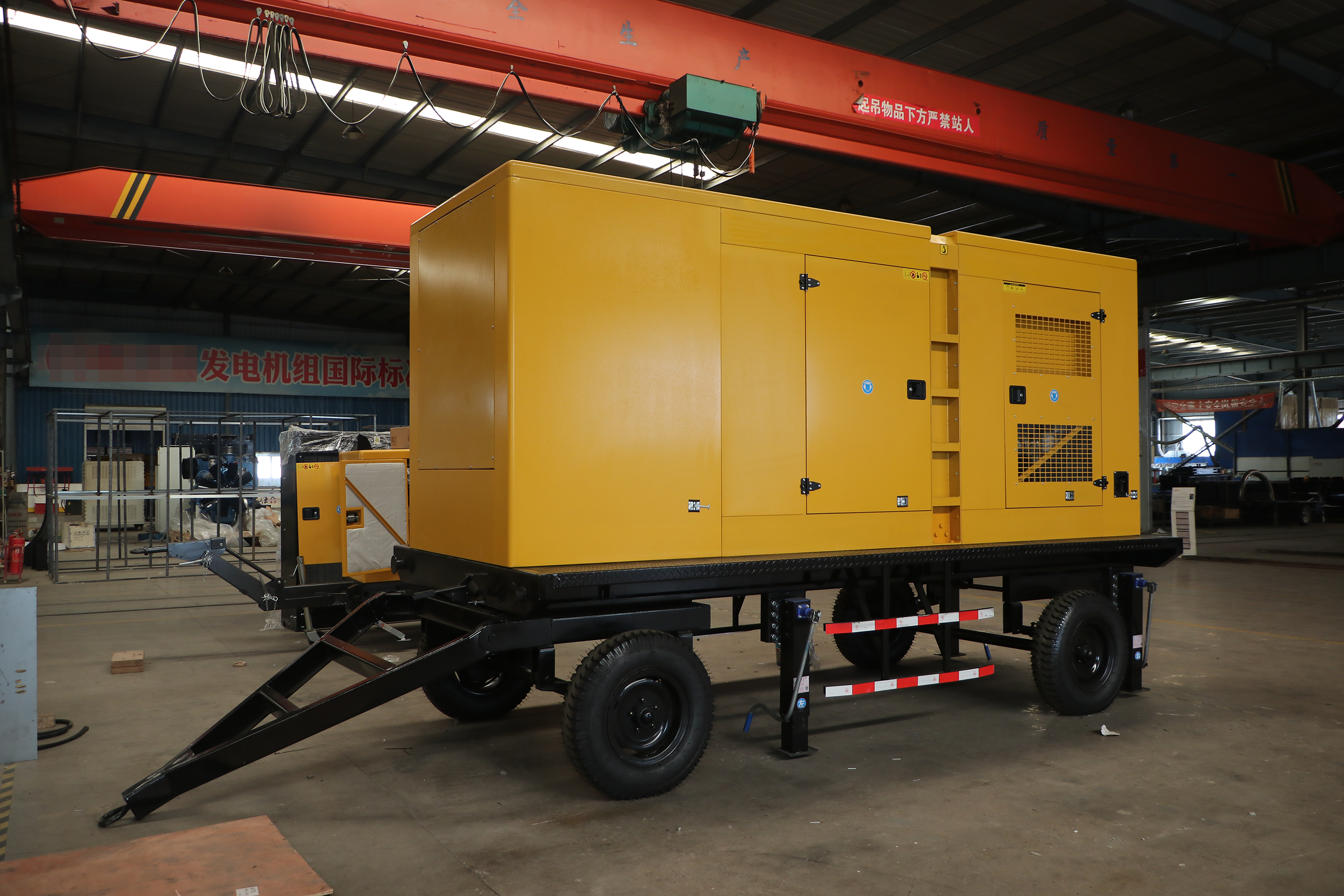

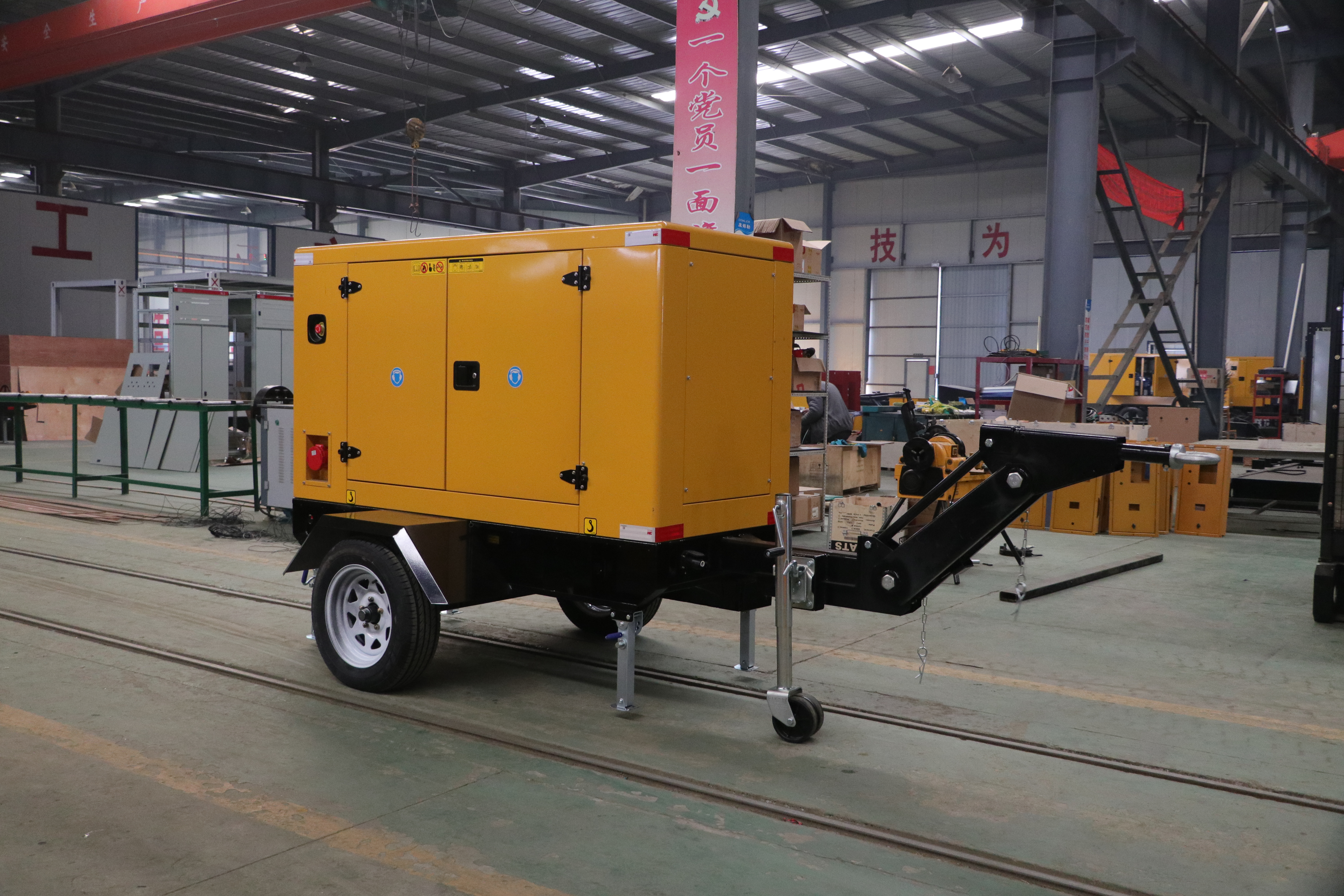

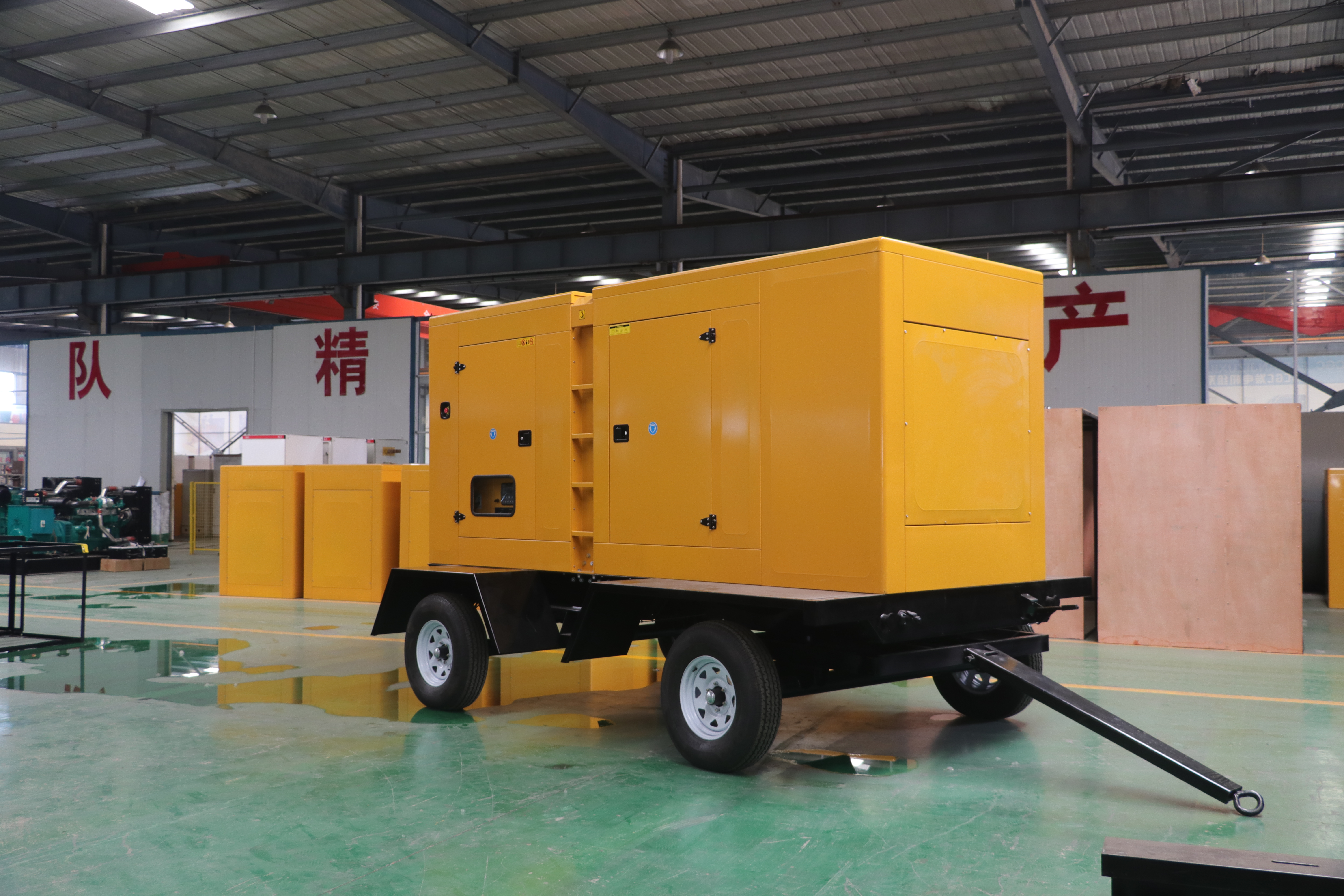

Heavy-Duty Trailer-Mounted Construction

Engine and alternator are bolted to a trailer chassis rated for road towing on anti-vibration mounts, so one tow moves the 300 kW unit between jobs.

300 kW Prime / 330 kW Standby Duty

The 300 kW prime / 330 kW standby rating is declared at 380/220 V, 50 Hz, 1500 rpm (375 kVA), intended for continuous prime duty with regular load swings across panel boards with mixed motor and lighting loads.

Tier-1 Diesel Engine Platforms

Engine options for the 300 kW diesel set are Cummins, Perkins, Weichai and Yuchai; whichever is specified, the engine is matched to the alternator and load-tested in our own works.

Closed Water-Cooling with Forced Fan

The 300 kW package uses closed water-cooling with forced ventilation and a large-capacity tank, holding temperatures steady during extended continuous duty in hot climates.

Industrial Protection and Environmental Adaptability

Enclosure sealing and anti-corrosion finishing are rated IP23 or higher on the 300 kW set, upgradable for harsher sites, treating dust, rain, snow and temperature extremes as normal conditions.

Flexible Configuration and Fast Deployment

Options on the 300 kW set include an automatic transfer switch, remote monitoring, cable winch and quick connectors; base-frame arrangement and control, protection and voltage settings are set to the project specification.

Specifications

Technical data — 300 kW trailer-mounted diesel generator set

Standard road-towable trailer unit configuration at 300 kW prime / 330 kW standby (375 kVA). Ratings, voltage and frequency are confirmed at specification.

Generator SetEngine & AlternatorControl & CoolingDimensions & Logistics

Related parameters	Parameter values
Power Capacity	Prime Power: 300 kW   Standby Power: 330 kW
Rated Voltage	380/220 Volts
Rated Current	Issued with the approved data sheet for the selected build
Rated Frequency	50 Hertz
Rated Speed	1500 rpm
Fuel Type	Diesel
Protection Grade	IP23 or higherUpgradable upon customization

Engine & alternator	Specification
Engine platform, standard	The engine platform for your order is confirmed at the specification stage
Alternative platforms	Cummins, Perkins, Weichai or Yuchai — the platform for your order is confirmed at order stage
Alternator	4-pole brushless, AVR-controlled — matched to the rating
Alternator brand options	Stamford, Leroy-Somer, Mecc Alte or Faraday
Matching	Engine, alternator and control system are matched to the rating and load profile you specify

Control & cooling	Specification
Cooling system	Closed water-cooling with forced cooling fan and large-capacity water tank, for stable temperature control under continuous load
Radiator design ambient	50 °C
Fuel system	Day-tank and fuel-system arrangement confirmed with the project specification
Control & protection	Configured to your project specification; optional automatic transfer switch (ATS) for automatic standby start, optional remote monitoring module
Ingress protection	IP23 or higher, upgradable upon customization

Dimensions & logistics	Value
Outline, trailer-mounted (L × W × H)	Issued with the approved dimensional drawing for the selected build
Outline, silent canopy (same rating)	Issued with the approved dimensional drawing for the alternative build
Base frame	Fabricated steel skid, side-mounted trailer-mounted layout
Net / gross weight	Supplied with the approved dimensional drawing and data sheet for your build
Container loading (20GP / 40HQ)	Supplied with the approved data sheet for your build
Basis	Standard trailer-mounted configuration at this rating; refer to the approved dimensional drawing before installation design

Published for the standard road-towable trailer unit configuration at 300 kW prime (375 kVA); the approved drawing and data sheet for your build govern installation design.

Request the data sheetPrint this page

Engine & options

Specify the engine platform, control scheme and build

Engine platform Cummins · Perkins · Weichai · Yuchai For the 300 kW set the engine is drawn from these Tier-1 platforms and matched to the alternator, with the final platform fixed at order stage.

Control & protection ATS & remote monitoring An automatic transfer switch and remote monitoring module can be specified on the 300 kW set. The control and protection scheme on the 300 kW set is configured to the project specification.

Build configuration Trailer-mounted standard Trailer-mounted standard

Applications

Where this 300 kW trailer-mounted diesel generator set is used

1. Production lines Production lines and compressors is a standard application for the 300 kW unit, which runs at continuous prime duty with regular load swings. Mixed motor and lighting load means the alternator is matched with step-load margin at 300 kW.

2. Hotels The 300 kW set is commonly applied to hotels and commercial buildings at continuous prime duty with regular load swings. Shift patterns for the 300 kW set usually mean 12–16 hours a day, so fuel autonomy is calculated on that basis.

3. Data For data and telecom rooms the 300 kW rating covers mid-size industrial and site power at continuous prime duty with regular load swings. Compressor and motor starts drive the transient requirement, which is checked against the 300 kW rating.

4. Quarries Where quarries and crushing plants is the load, the 300 kW rating is normally specified at continuous prime duty with regular load swings. Parallel operation on the 300 kW set is often considered where duty is split between two units.

5. Agricultural processing The 300 kW trailer-mounted diesel generator set set suits agricultural processing. Duty is continuous prime duty with regular load swings. Sound limits at the boundary usually point to a canopy build at the 300 kW rating.

6. Site offices Site offices and welfare blocks is a standard application for the 300 kW unit, which runs at continuous prime duty with regular load swings. Cable runs for the 300 kW set are longer, so voltage drop is checked before the final rating is fixed.

Compare configurations

Open frame, silent or containerized?

This 300 kW rating is engineered and tested to one standard across the three builds — what changes is enclosure, access and transport.

Consideration	Trailer-mounted (this model)	Silent	Containerized
Enclosure	Open steel base frame, no canopy	Soundproof canopy	40HQ container shell
Service access	Unrestricted — no panels to remove for routine maintenance	Through canopy access doors and monitoring windows	Through container doors and reserved access panels
Noise control	Not attenuated — trailer-mounted layout	Multi-stage silencing structure and sound-absorbing materials	Container shell combined with silencing
Weight and transport	Lightest of the three builds	Heavier than trailer-mounted	Container handling and ocean freight
Typical duty	Prime power on site; standby for factories and buildings	Noise-sensitive locations such as residential, commercial and healthcare sites	Rapid transport and deployment, remote and long-duration sites
Rated power of this model	300 kW prime / 330 kW standby	Quoted per project	Quoted per project
Protection grade	IP23 or higher, upgradable	Upgradable upon customization	Upgradable upon customization
Minimum order quantity	1 set	Quoted per project	Quoted per project

This model · 300 kW trailer-mounted diesel generator set

Range · 10–3,750 kVA

Diesel & gas

Open frame · silent · containerized · mobile

All trailer-mounted sets

Tell us the rating, voltage and frequency for the 300 kW unit and we will confirm a configuration.

FAQ

Frequently asked questions about this 300 kW trailer-mounted diesel generator set

What power rating does this generator set provide?

This unit is rated 300 kW prime / 330 kW standby (375 kVA) at 380/220 V, 50 Hz, 1500 rpm. Rated current is stated on the approved data sheet for the selected build, because it follows the voltage and power factor confirmed for the project.

Which diesel engines are available for this set?

This 300 kW set is available on Cummins, Perkins, Weichai and Yuchai platforms. The engine is matched to the alternator at the 300 kW rating and the complete set is aligned and full-load tested in our own works, so the platform for your order is confirmed at specification stage rather than assumed.

Trailer-Mounted, silent or containerized — how do I choose?

Enclosure choice follows site conditions rather than rating. This page covers the road-towable trailer unit build; at 300 kW the same engine and alternator package can also be supplied in the other builds across Outevo’s 10–3,750 kVA range, with parallel operation is available where duty is split across two units.

Can the voltage and frequency be customised?

Yes. 380/220 V and 50 Hz are the published standard for the 300 kW rating, but voltage and frequency are set to your project specification under OEM/ODM terms, including 60 Hz and medium-voltage requirements where the project calls for them.

What is the minimum order quantity?

One set. A single 300 kW unit can be ordered for a standalone site; where load growth or redundancy is expected, parallel operation is available where duty is split across two units. Other ratings in the 10–3,750 kVA range are quoted per project.

How is the quality of each unit assured?

Every 300 kW set is assembled and load-tested on our own production lines before shipment, and travels with a data sheet and test record. Shanghai Outevo Machinery Co., Ltd. has manufactured diesel and gas generator sets since 2006 from a 20,000 m² manufacturing facility.

Get a quote

Configure your 300 kW trailer-mounted diesel generator set

Send the voltage and frequency you need with the 300 kW rating and the site location, and our engineering team returns a configuration and quotation.

What we need from you

• Required power rating — this model or another rating in the 10–3,750 kVA range
• Voltage and frequency settings for your site
• Prime power or standby duty, and the application
• Destination port and required quantity
